A CFA Charterholder Built an ML Fraud Detector: Here's What the Models Miss

I’m a CFA charterholder who builds ML systems. I trained XGBoost on 100K financial transactions to detect fraud — AUC 0.987. But the most interesting finding wasn’t the model performance. It was that CFA-informed rule-based scoring achieves 0.898 AUC on its own, and 8 of the top 20 predictive features come from domain expertise, not raw data.

Here’s what happens when you bring financial analysis training to ML fraud detection.

Why CFA x ML Matters

Most ML fraud detection papers treat feature engineering as a purely statistical exercise: normalize amounts, encode categoricals, maybe add some velocity features. A CFA sees transactions differently:

• Amount-to-median ratio (not raw amount) — a $500 transaction at a gas station is suspicious; at a car dealer, it’s normal
• Merchant risk tiers — not all merchants are equal; high-risk categories (online gaming, crypto exchanges) have higher fraud baselines
• Suspicious timing — night + weekend + high amount = different risk profile than Tuesday afternoon

These are features a domain expert engineers. A pure ML practitioner wouldn’t think to create them. And SHAP shows they matter.

Results

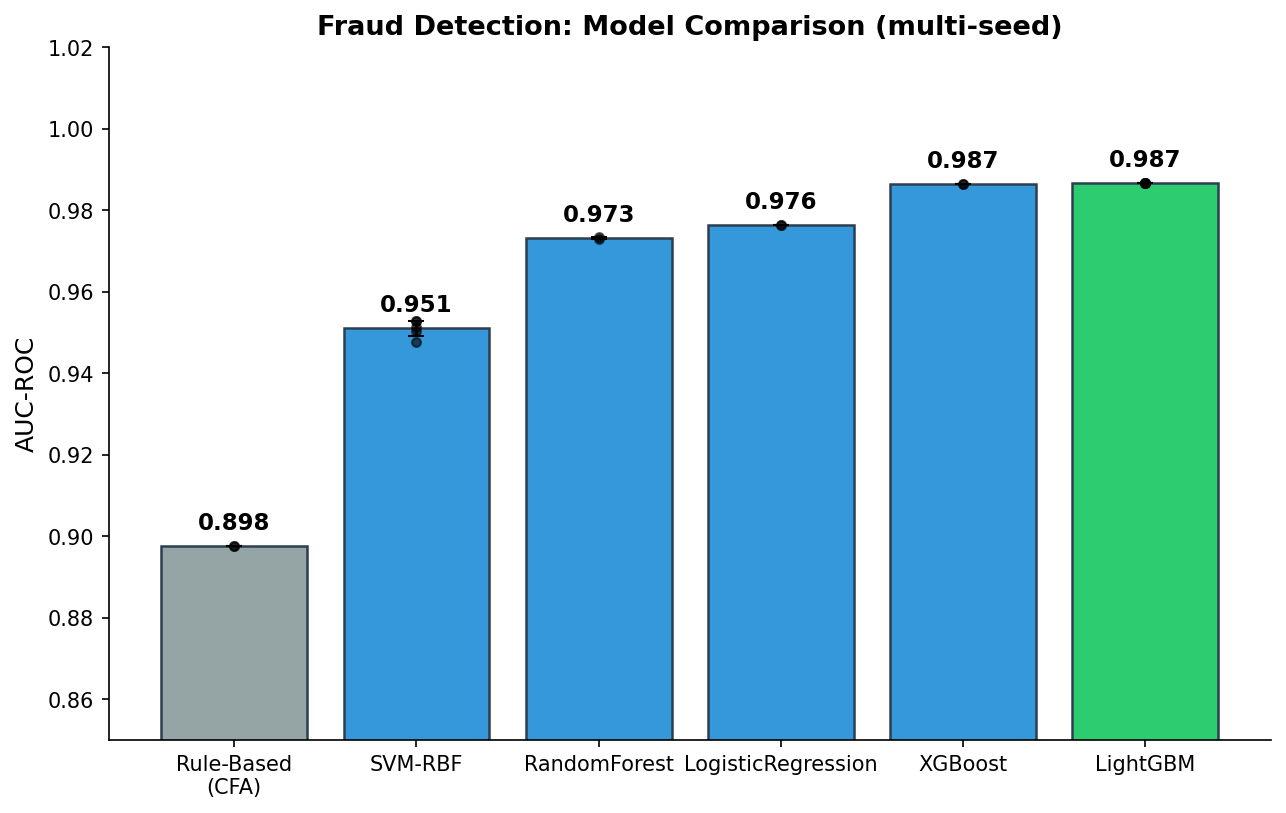

ML Beats Rules, But Rules Are Strong

XGBoost achieves 0.987 AUC — excellent. But the CFA-informed rule-based baseline scores 0.898. That’s not a weak baseline. It means domain expertise in rules captures ~91% of what ML captures. The last 9 percentage points come from non-linear interactions ML finds automatically.

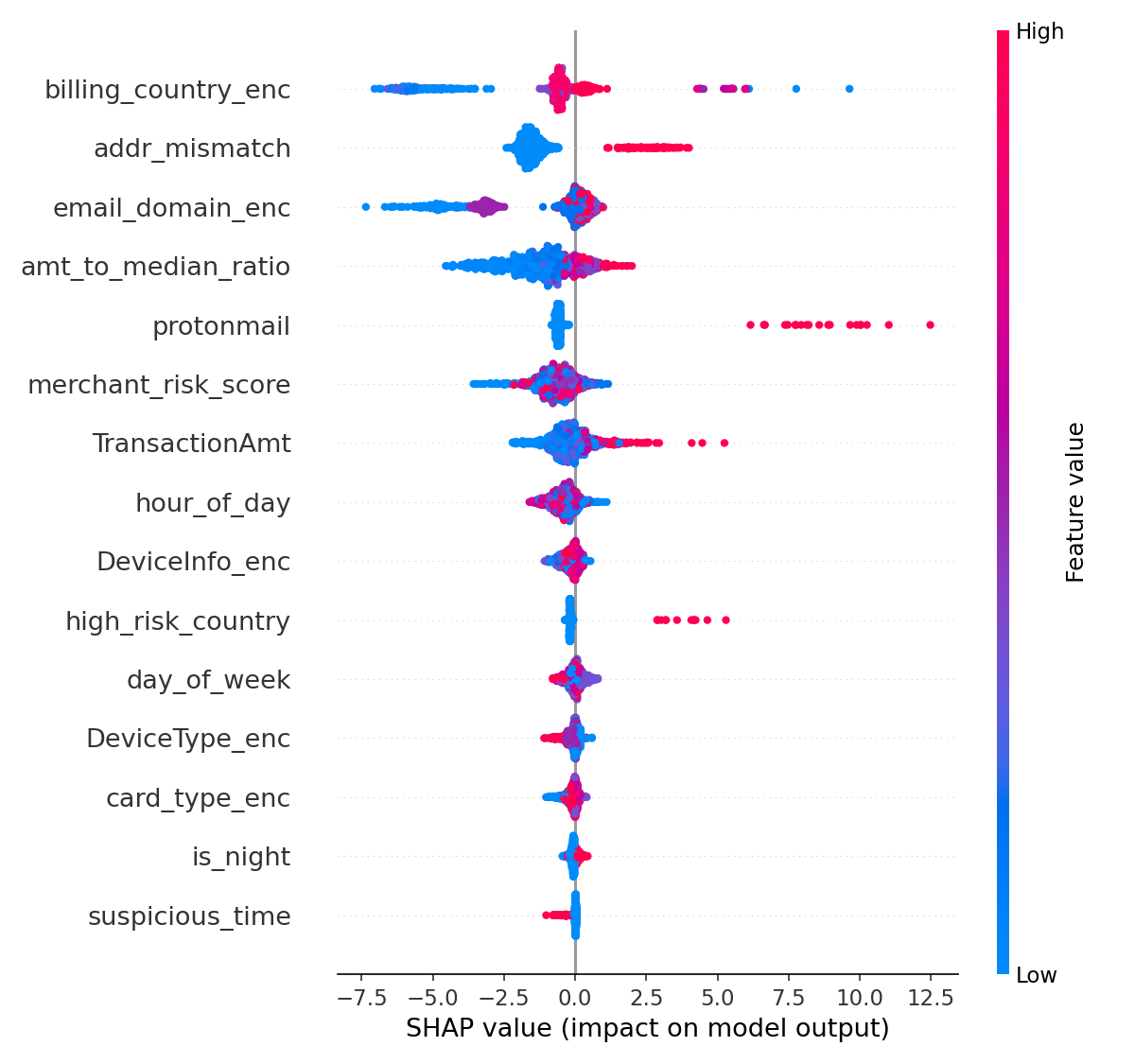

CFA Features in Top 20 SHAP

8 of the top 20 most predictive features are CFA-informed:

1. amt_to_median_ratio (rank 4) — relative transaction size vs merchant normal
2. protonmail (rank 5) — privacy-focused email = risk signal
3. high_risk_country (rank 10)
4. suspicious_time (rank 15) — night + weekend

The raw TransactionAmt ranks 7th. The CFA-informed amt_to_median_ratio ranks 4th. Relativizing amounts to merchant context adds predictive power.

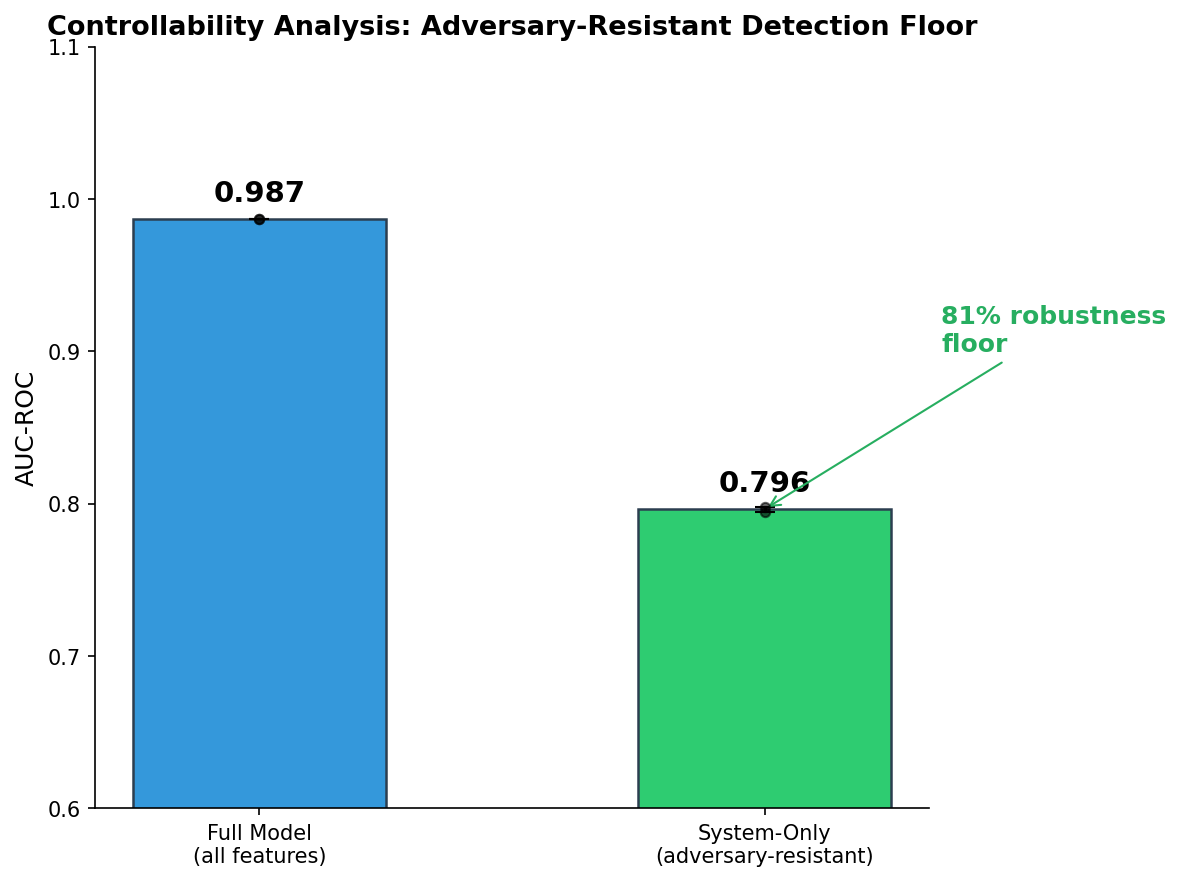

Controllability: The 81% Adversary-Resistant Floor

Applying controllability analysis (5th domain validation):

A sophisticated fraudster controls: transaction amount, timing, email, billing country. They do NOT control: card BIN, device fingerprint, merchant risk score, address verification result. The system-only model retains 81% of detection capability even if the fraudster perfectly manipulates everything they control.

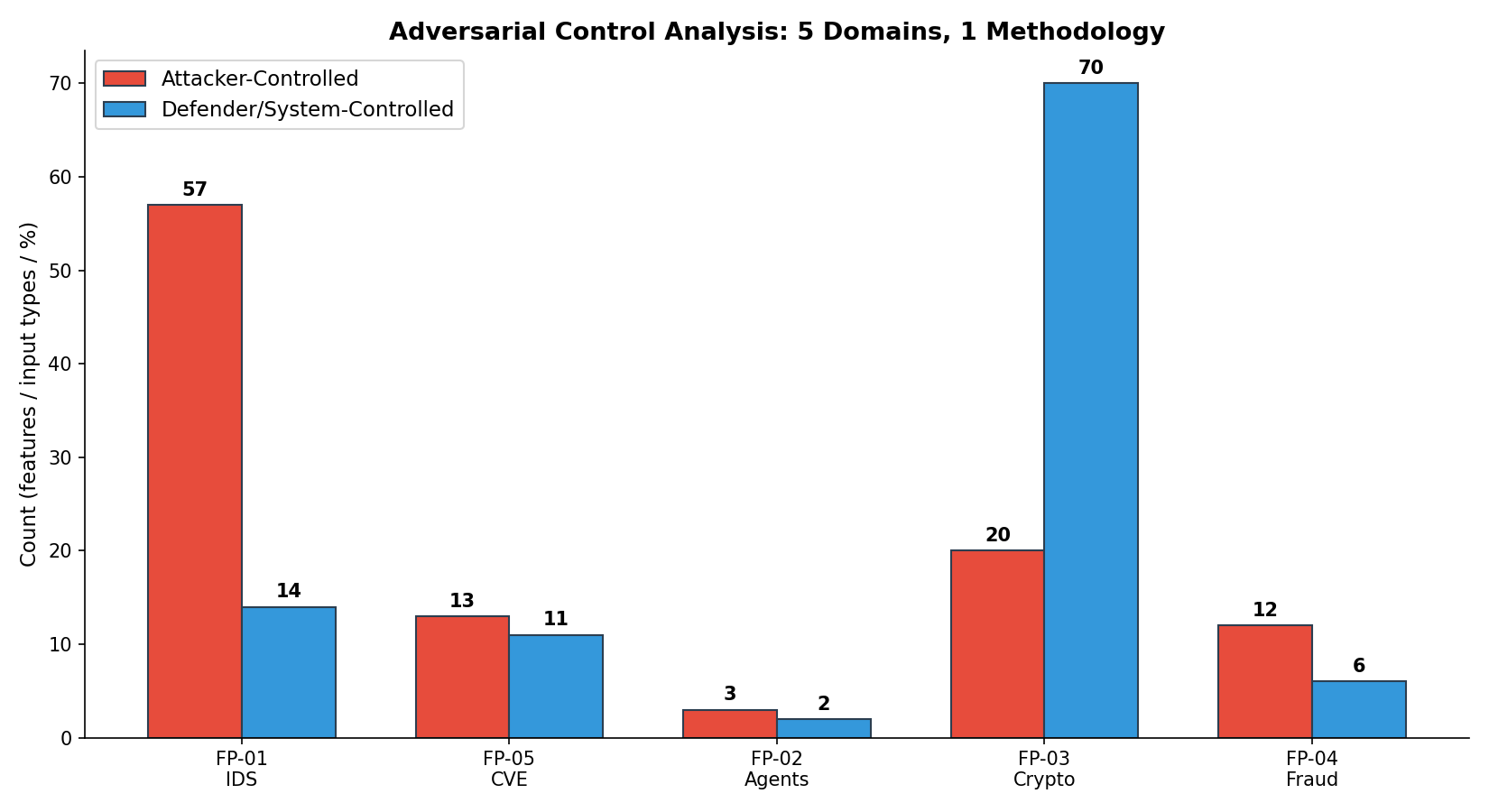

5 Domains, 1 Methodology

This is the fifth project where controllability analysis produces actionable security insights. The pattern holds across network security, vulnerability prediction, AI agents, cryptographic migration, and now financial fraud. It’s a general principle.

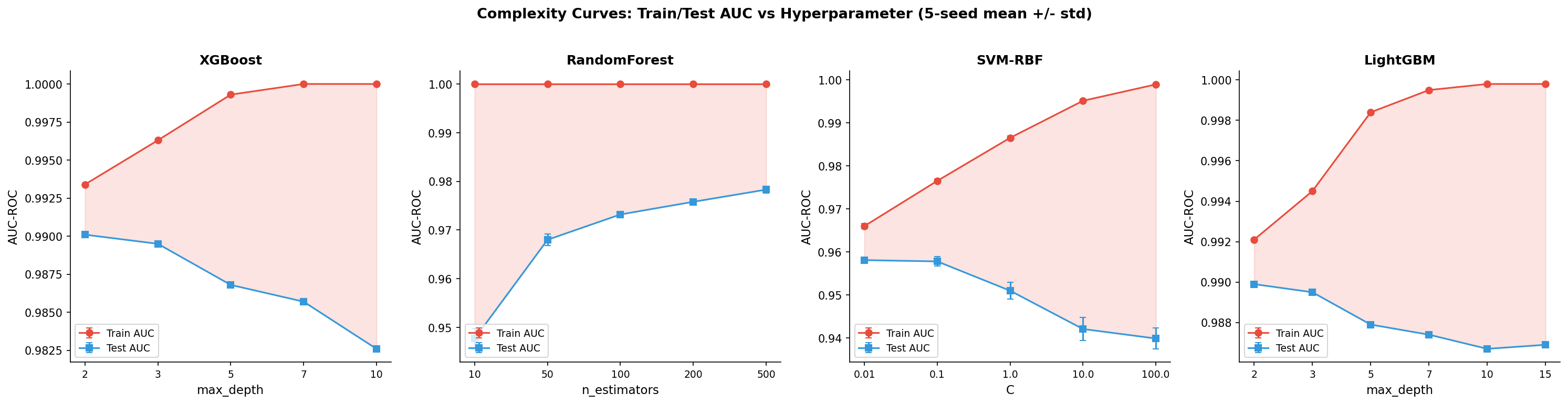

Complexity Curves: Shallow Trees Win

XGBoost peaks at max_depth=2 (AUC 0.990) and degrades with deeper trees. LightGBM is more robust to over-parameterization. SVM-RBF shows the steepest overfitting. The lesson: on this data, simplicity beats capacity.

What I Learned

Rules aren’t dead. The ML community often dismisses rule-based systems. In fraud detection, CFA-informed rules provide a strong floor (0.898 AUC) that ML improves upon but doesn’t replace. The optimal system uses both: rules as the fast path, ML for edge cases.

Domain expertise is a feature engineering multiplier. The same raw data produces better features when engineered by someone who understands the domain. CFA training teaches you to think in ratios, risk tiers, and temporal patterns — exactly what fraud ML needs.

Controllability quantifies adversarial robustness. Instead of asking “can a fraudster evade the model?” ask “what’s the detection floor from features the fraudster can’t control?” The answer (81%) is the number a CISO needs.

The code is open source: financial-anomaly-detection on GitHub. Built with govML v2.5.

Limitations

This analysis uses synthetic transaction data (PaySim), which simulates but doesn’t perfectly replicate real-world fraud patterns. The CFA-informed rules were designed by a single analyst — different domain experts might identify different features. All models were evaluated on a single temporal split without rolling-window validation. The controllability analysis classifies features qualitatively — a more rigorous approach would quantify controller influence.

What’s Next

I’m extending the adversarial controllability analysis to more domains — see One Principle, Six Domains for the cross-domain methodology. The feature engineering approach here (domain expertise → feature design → ML validation) is a template I’m applying to every new security domain. The financial fraud application validates that ACA works outside network security.
